Motherboard Specifications | |
---|---|
Supported Processors | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
Chipset | Intel® B760 Express Chipset |
Socket | LGA1700 |
Memory Type | DDR5 |
Memory Slots | 2 |
Maximum Memory | 96GB |
Memory Bus Speed | 2x DDR5 Maximum Memory Capacity 96GB Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz |

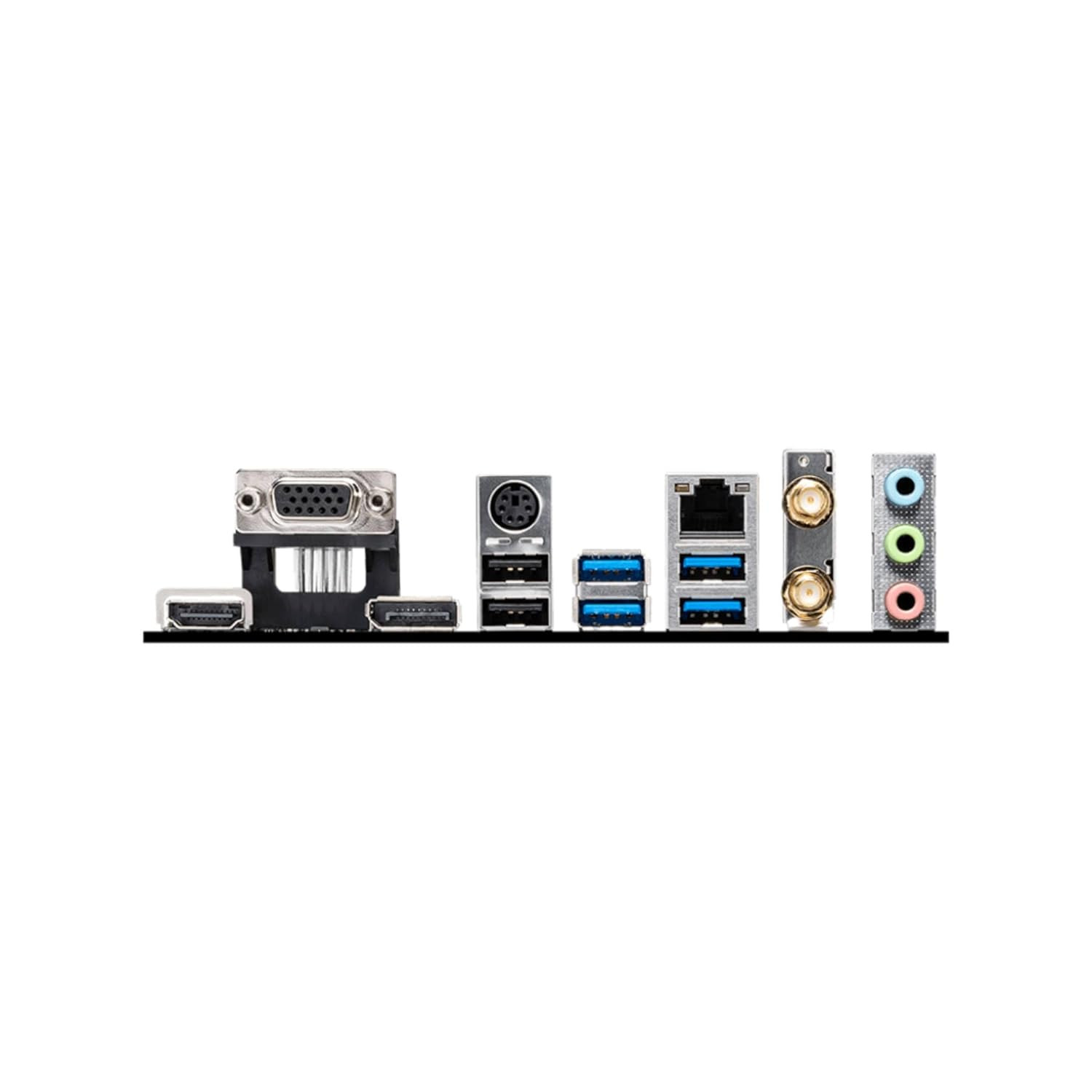

Ports | HDMI™ VGA DisplayPort Keyboard / Mouse 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) |
Form Factor | mATX |
M.2 Slots | Yes |
Expansion Slots | 1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) |
