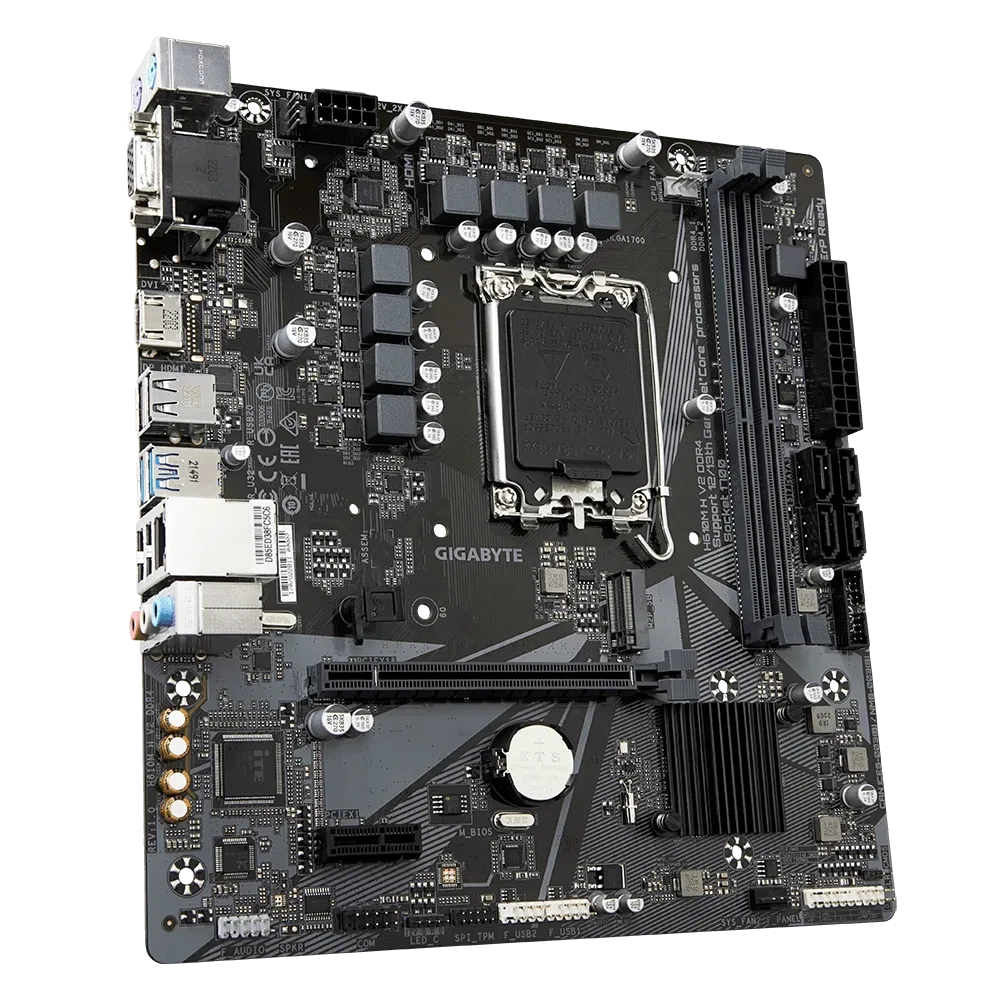

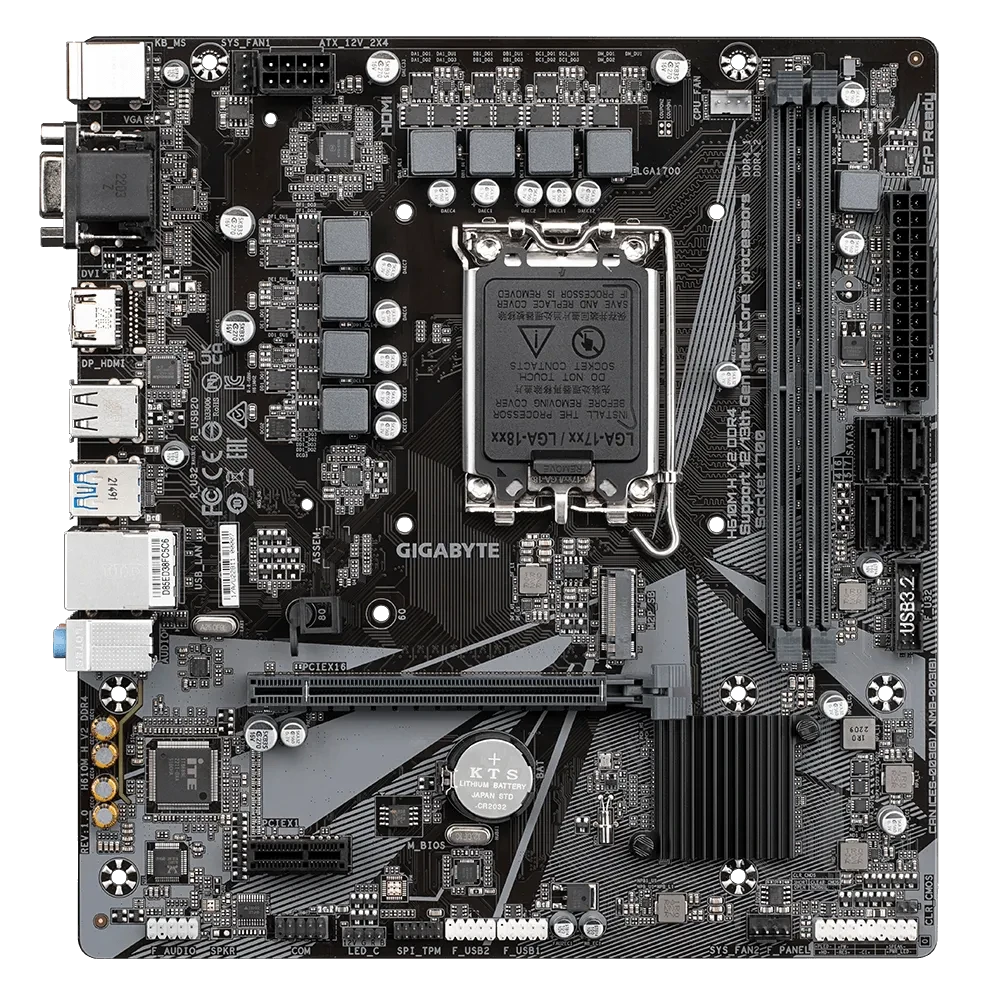

GIGABYTE H610 H V2 DDR4 Intel® H610 LGA 1700 (14Th, 13Th & 12Th Gen), mATX Motherboard, 6 + 1 + 1 Phases Hybrid Digital VRM, PCI-E 4.0, Gb LAN, 2 RAM DIMMS, 1 M.2 Slot

(0 reviews)

Sold by:
Inhouse product

Price:
JOD79.00 /1

Quantity:

Total Price:
Share:
Motherboard Specifications
Supported ProcessorsLGA1700 socket: Support for 12th Generation Intel® Core™
Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
ChipsetIntel® H610M H V2 Chipset
SocketLGA1700
Memory TypeDDR4
Memory Slots2
Maximum Memory64GB
Memory Bus Speed
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

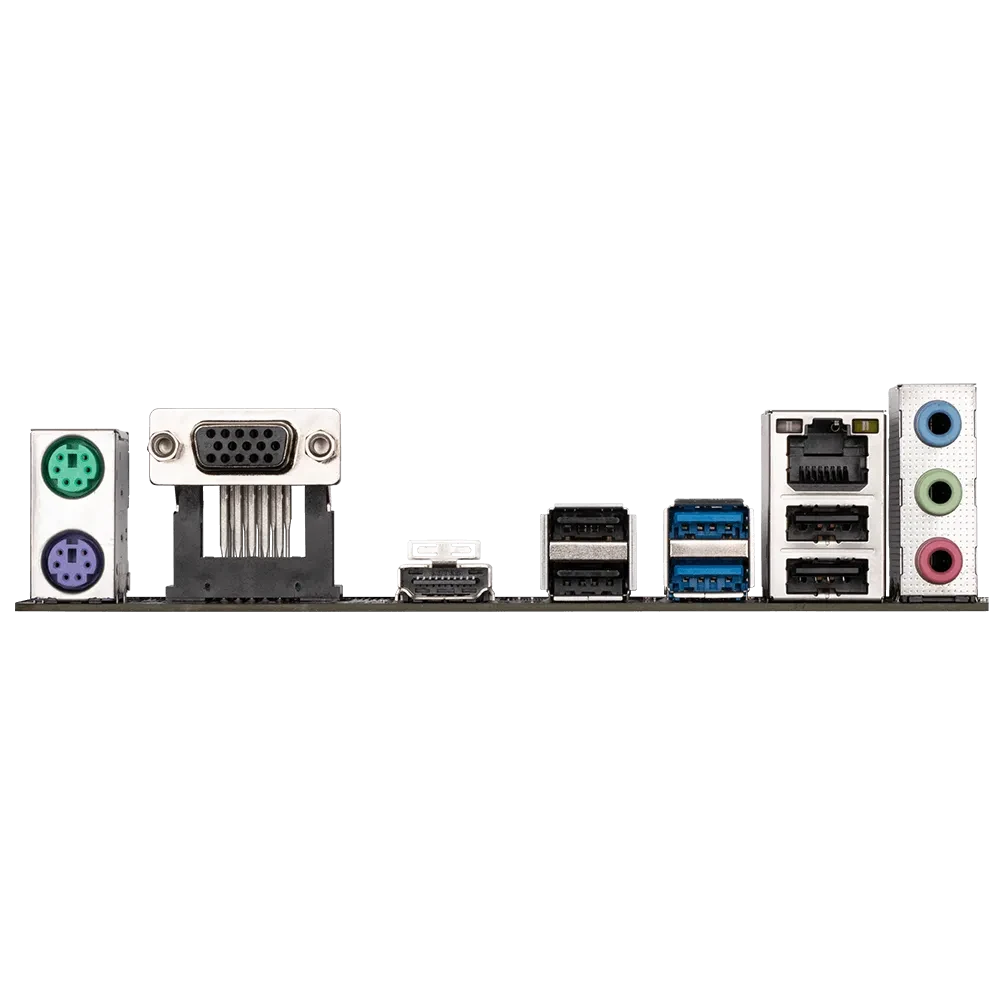

Ports1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x HDMI 2.0 port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Form FactormATX
M.2 SlotsYes
Expansion Slots1 x PCI Express x16 slot
running at x16
* For optimum performance
if only one PCI Express graphics card is to be installed
be sure to install it in the PCIEX16 slot.
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
