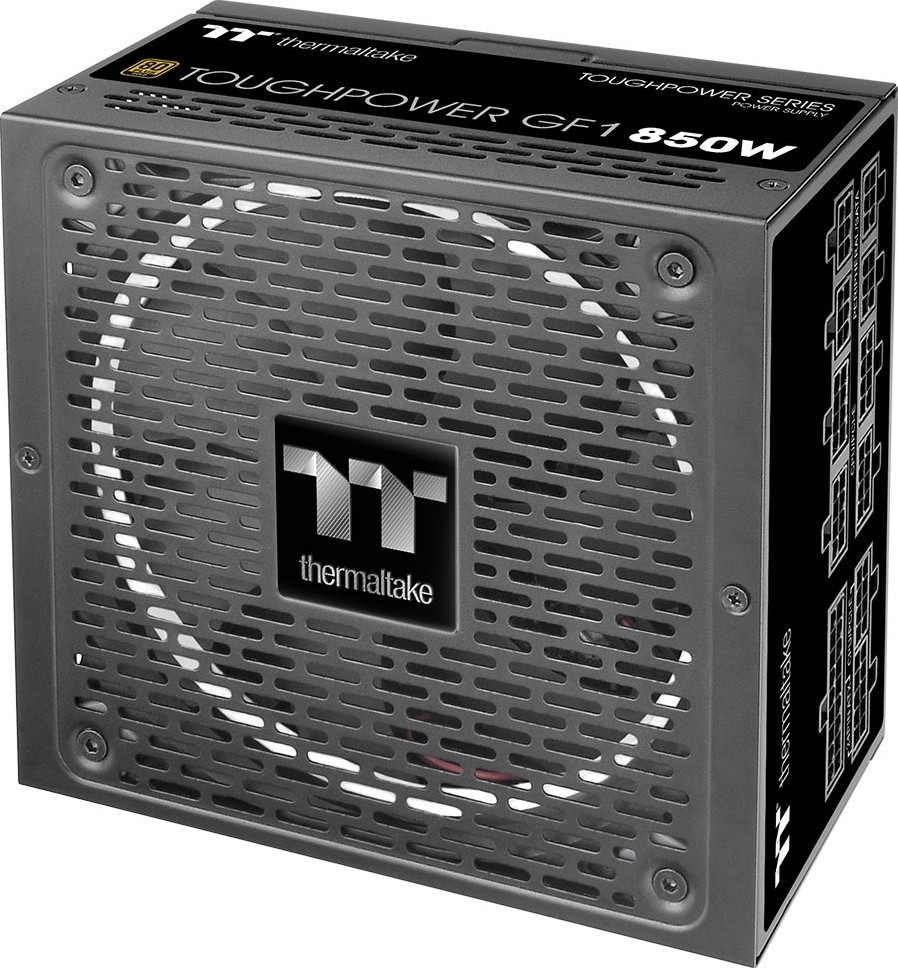

Thermaltake Toughpower GF1 850 Watt Power Supply, Full Modular, 80 Plus Gold, PSU, Single Rail, 70A, 140mm Fan, ATX, Black | PS-TPD-0850FNFAGK-1
(0 reviews)
Sold by:
Inhouse product
Inhouse product
Price:
JOD105.00
/1
Share:
Top Selling Products
General
Brand
Thermaltake
Model
Thermaltake Toughpower GF1
Series
Toughpower GF
PSU Category
Full Modular
Type
ATX
Part No
PS-TPD-0850FNFAGK-1 / PS-TPD-0850FNFAGK-2
Cooling & Lighting
Fan Size
140mm
Performance
Efficiency
90% Efficiency
Efficiency Rating
80 Plus Gold
PFC (Power Factor Correction)
Active PFC
Power Good Signal
100-500 msec
Hold Up Time
>16msec at 100% of full load
Protection
Protection
OCP, OVP, UVP, OPP, SCP, OTP
Over Voltage Protection (OVP)
Yes
Over Power Protection (OPP)
Yes
Over Current Protection (OCP)
Yes
Over Temperature Protection (OTP)
Yes
Short Circuit Protection (SCP)
Yes
Under Voltage Protection (UVP)
Yes

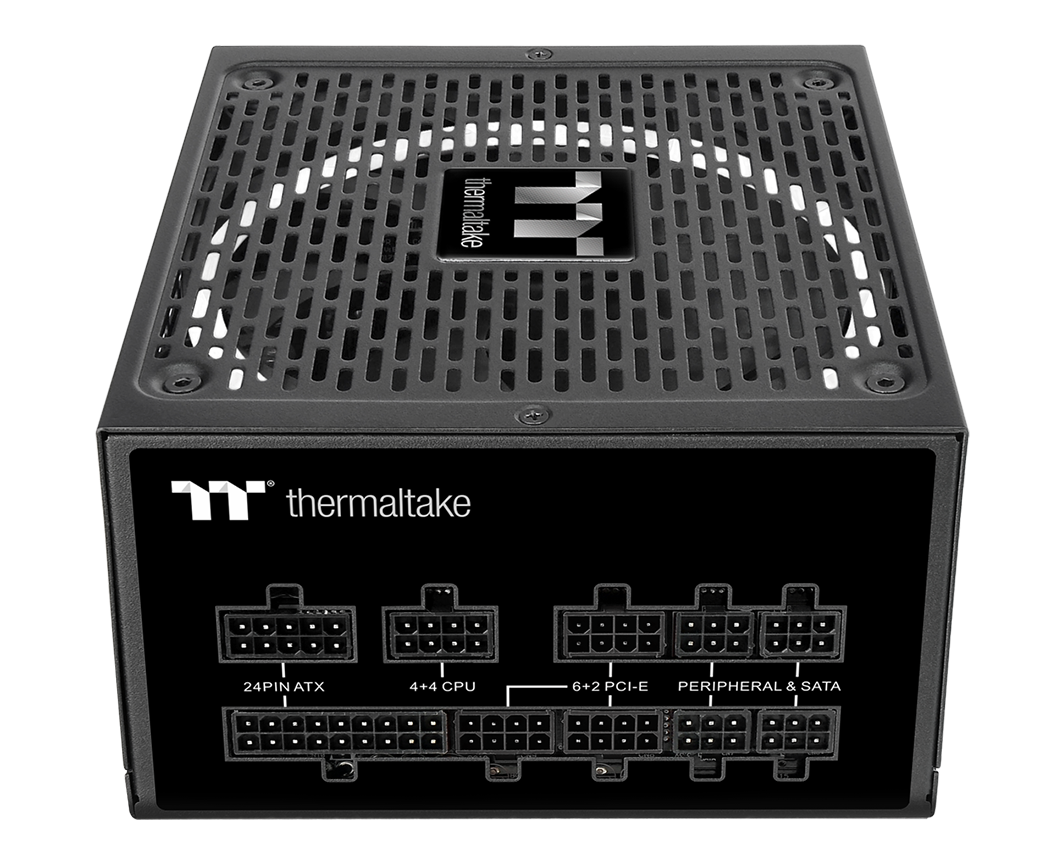

Connectors
ATX Main Connectors
1
EPS Connectors
2
PCIe Connectors
6
SATA Power Connectors
12
4-Pin Peripheral Connectors
4
Floppy Connectors
1
Power
Min. Power (Approx.)
765W
Maximum Power
850 Watt
Input Voltage
100V - 240V
Input Frequency Range
50Hz - 60Hz
Input Current
12A
Peak Output Capacity
1020W
Operating Temperature
0 degree C - + 50 degree C
Operating Humidity
20% - 90% non-condensing
Storage Temperature
-20 degree C - + 70 degree C
Storage Humidity
5% - 95% non-condensing
Physical Description
MTBF
120,000 hours
Form Factor
ATX
Dimensions
150 x 86 x 160mm
Color
Black
Warranty
Warranty Details
1 year
Additional Info
Regulatory / Safety Approval
CE, cTUVus, TUV SUD, FCC, BSMI, EAC
Others
COOLING SYSTEM: 140mm hydraulic bearing fan, EFFICIENCY: Meet 80 PLUS Gold at 115Vac input. MTBF: 120,000 hrs minimum, PCI-E 6+2PIN: 6, Durable Chassis, Anti-Vibration Mounting System, DC to DC Design, Modular Cable Management, Side Ventilation Design, Concentrated Compression Fan Blade, Zero Cable Platform
Specialty
The fully modular Toughpower GF1 series built to deliver 80 PLUS Gold efficiency. The series features a 140mm hydraulic bearing fan, Japanese capacitors and other premium components, We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality. Featuring a 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.
There have been no reviews for this product yet.
