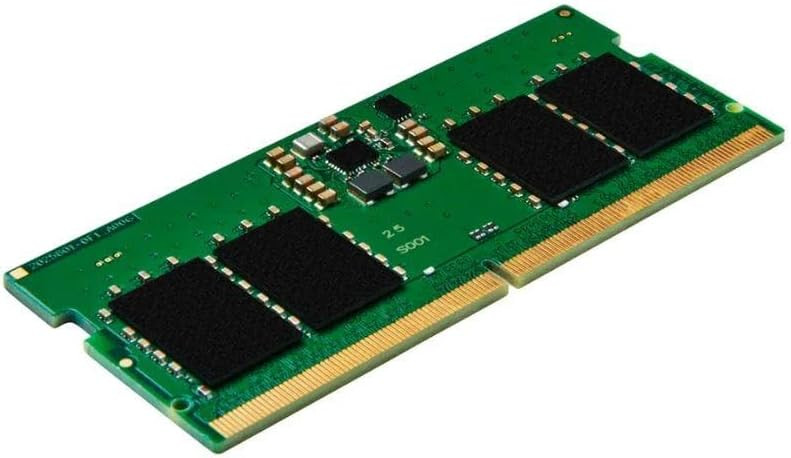

Kingston Ram 8GB 5600 Mhz DDR5 SODIMM for Laptop KVR56S46BS6-8

KVR56S46BS6-8 8GB 1Rx16 1G x 64-Bit PC5-5600 CL46 262-Pin SODIMM

DESCRIPTION This document describes ValueRAM's KVR56S46BS6-8 is a 1G x 64-bit (8GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components.  The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES •   Power Supply: VDD = 1.1V Typical •   VDDQ = 1.1V Typical •   VPP = 1.8V Typical •   VDDSPD = 1.8V to 2.0V •   On-Die ECC •   PCB:  Height 1.18” (30.00mm) •   RoHS Compliant and Halogen-Free

SPECIFICATIONS CL(IDD) Row Cycle Time (tRCmin) Refresh to Active/Refresh Command Time (tRFCmin) Row Active Time (tRASmin) UL Rating Operating Temperature Storage Temperature 46 cycles 48ns(min.) 295ns(min.) 32ns(min.) 94 V - 0 0o C to +85o C-55o C to +100o C
